Over-Mold Installation
With over-mold installation the inserts are placed on a guide pin, which is used to locate and retain the insert prior to molding, as well as preventing the ingress of plastic during the molding process. In addition to our standard designs, we can provide both modified standard parts as well as specials.

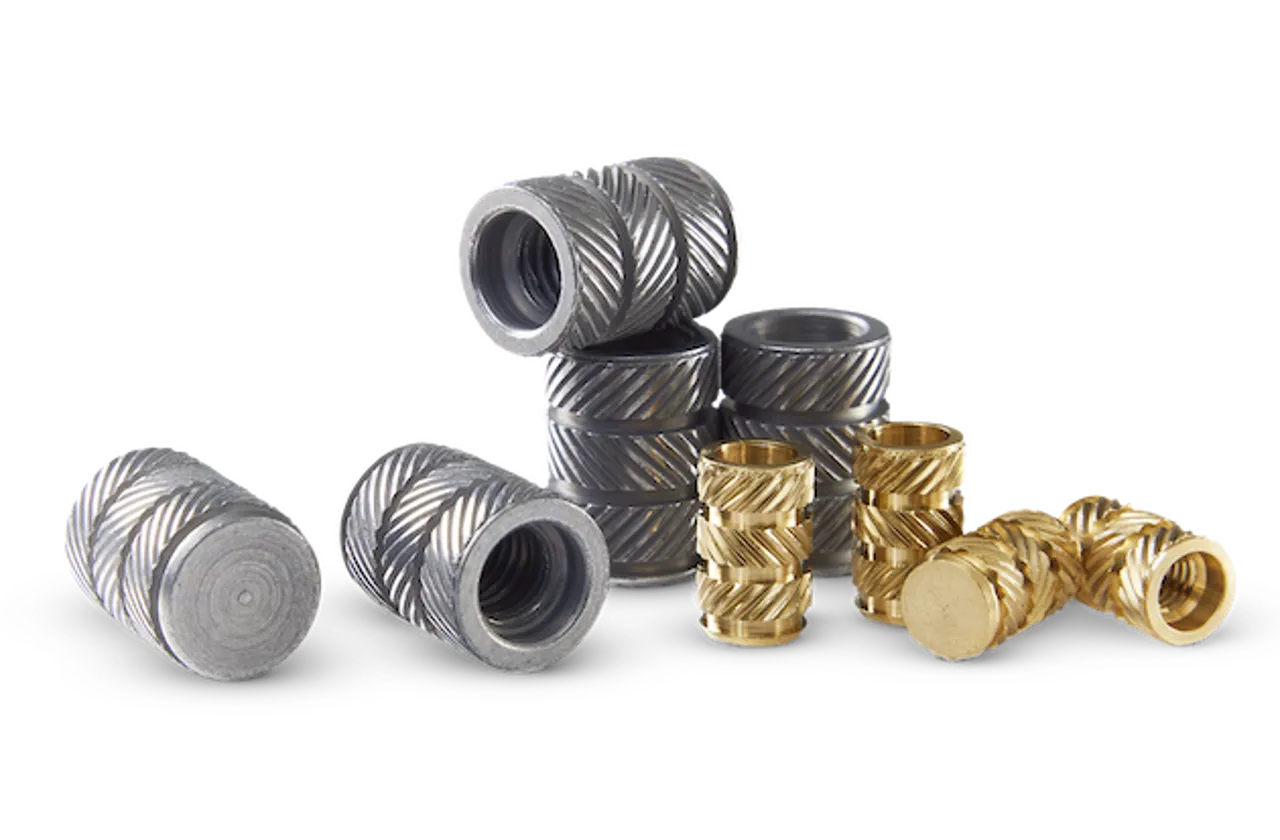

FLO-TECH®
A blind-ended threaded insert which has been introduced to meet the needs of those molders who, for a variety of reasons, prefer to mold in. The unique design of three opposed helical knurl bands combined with the included recesses give extremely high levels of performance in both pull-out and torque tests.
Advantages
- Blind ended – prevents ingress of plastic
- Counterbore prevents ingress of plastic and eases assembly on locating pins
- Unique design ensures high levels of performance
- Rolled threads reduce risk of contamination of moldings due to metal swarf
- Absence of pip at blind end reduces risk of contamination and assists automatic insert loaders
MOLD-FORM™
MOLD-FORM™ is a cold-formed thru-hole insert that provides reduced cost, ease of installation, and excellent performance.
- Cold-formed steel design provides a cost savings of up to 50% over comparable machined inserts
- MOLD-FORM™ is simply located on a pin within the mold tool, giving a consistent flash-free insertion
- Six large splines provide exceptional direct torque resistance
- Cold formed steel achieves PC 8 strength, with PC 10 also available
